简介及安装

• 参考
• 基本概念
• 安装
  • 准备工作
  • 管理节点配置
  • 脚本安装执行节点
  • 管理命令
• 注意
• 配置文件

参考

http://www.softpanorama.org/HPC/Grid_engine/Queues/queue_states.shtml http://www.chenlianfu.com/?p=2441

基本概念

集群中的主机分2种:控制节点(mater)和计算节点(slave)。其中控制节点只在一台机器上部署，该控制节点也同时作为计算节点;其它主机全部是计算节点。

计算资源是由host的slots构成。可以选取集群中部分的hosts，定义为host用户组。

队列则表示集群中计算资源的容器。例如，名称叫all.q的队列对应着集群中全部的计算资源。

若不想让某些用户使用集群全部的计算资源，则定义一个新的队列名，且该队列仅能使用集群部分的计算资源。

使用SGE集群进行计算的时候，为了进行并行化计算，需要设置并行化参数。

安装

准备工作

• 修改集群端口为不常用端口

sed -i 's#6444/tcp#27100/tcp#g' /etc/services
sed -i 's#6444/udp#27100/udp#g' /etc/services
sed -i 's#6445/tcp#27101/tcp#g' /etc/services
sed -i 's#6445/udp#27101/udp#g' /etc/services

• 在/etc/hosts文件中配置节点对应的解析

cat /etc/hosts
172.168.1.6 test1
172.168.1.7 test2
172.168.1.8 test3

• 配置SGE根目录

SGE所在目录需存入环境变量中

export SGE_ROOT=/ssd/01.software/02.sge/ge2011

管理节点配置

登陆管理节点，进入$SGE_ROOT目录下执行./install_qmaster，然后按照提示执行即可

脚本安装执行节点

前置条件

• hosts配置无误
• 配置免密（或者采用NIS服务）

编辑配置文件

将其中的三个 HOST_LIST 都改为要添加的节点，如有多个节点采用空格分隔。配置文件详见后文。

# A List of Host which should become admin hosts
# If you do not enter any host here, you have to add all of your hosts
# by hand, after the installation. The autoinstallation works without
# any entry
ADMIN_HOST_LIST="test1"
# A List of Host which should become submit hosts
# If you do not enter any host here, you have to add all of your hosts
# by hand, after the installation. The autoinstallation works without
# any entry
SUBMIT_HOST_LIST="test1"
# A List of Host which should become exec hosts
# If you do not enter any host here, you have to add all of your hosts
# by hand, after the installation. The autoinstallation works without
# any entry
# (mandatory for execution host installation)
EXEC_HOST_LIST="test1"

执行安装操作

./inst_sge -x -auto /ssd/01.software/02.sge/ge2011/inst.conf

配置节点信息

主要修改complex_values

qconf -me test1

卸载执行节点

./inst_sge -ux -host test1

管理命令

qconf -ae hostname
    添加执行主机
qconf -de hostname
    删除执行主机
qconf -sel
    显示执行主机列表

qconf -ah hostname
    添加管理主机
qconf -dh hostname
    删除管理主机
qconf -sh
    显示管理主机列表

qconf -as hostname
    添加提交主机
qconf -ds hostname
    删除提交主机
qconf -ss
    显示提交主机列表

qconf -ahgrp groupname
    添加主机用户组
qconf -mhgrp groupname
    修改主机用户组
qconf -shgrp groupname
    显示主机用户组成员
qconf -shgrpl
    显示主机用户组列表

qconf -aq queuename
    添加集群队列
qconf -dq queuename
    删除集群队列
qconf -mq queuename
    修改集群队列配置
qconf -sq queuename
    显示集群队列配置
qconf -sql
    显示集群队列列表

qconf -ap PE_name
    添加并行化环境
qconf -mp PE_name
    修改并行化环境
qconf -dp PE_name
    删除并行化环境
qconf -sp PE_name
    显示并行化环境
qconf -spl
    显示并行化环境名称列表

qstat -f
    显示执行主机状态
qstat -u user
    查看用户的作业
qhost
    显示执行主机资源信息

注意

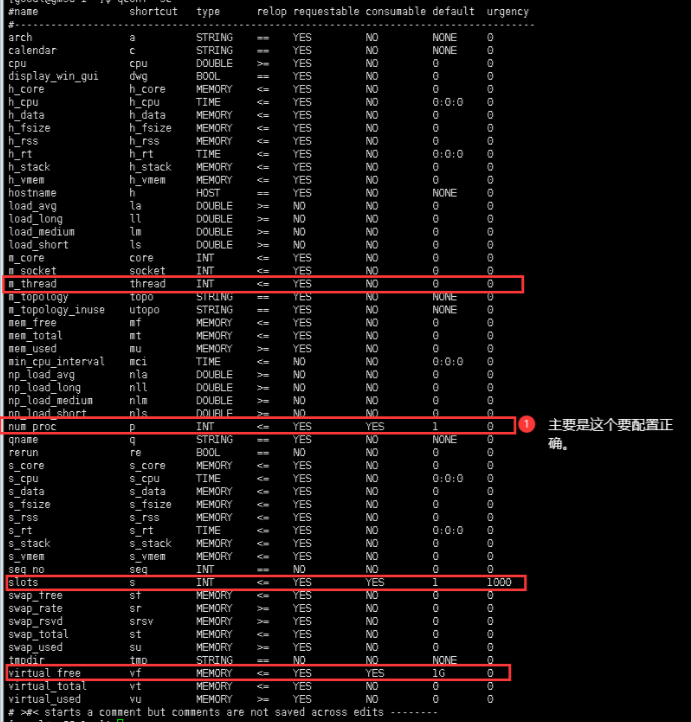

需配置正确的资源池才可正常进行使用

命令如下

qconf -mc

配置文件

# Oct 11, 2019: Modify from util/install_modules/inst_template.conf

#-------------------------------------------------
# Huawei SGE configuration file
#-------------------------------------------------

# Use always fully qualified pathnames, please

# SGE_ROOT Path, this is basic information
#(mandatory for qmaster and execd installation)
SGE_ROOT="/ssd/01.software/02.sge/ge2011"

# SGE_QMASTER_PORT is used by qmaster for communication
# Please enter the port in this way: 1300
# Please do not this: 1300/tcp
#(mandatory for qmaster installation)
SGE_QMASTER_PORT="27100"

# SGE_EXECD_PORT is used by execd for communication
# Please enter the port in this way: 1300
# Please do not this: 1300/tcp
#(mandatory for qmaster installation)
SGE_EXECD_PORT="27101"

# SGE_ENABLE_SMF
# if set to false SMF will not control SGE services
SGE_ENABLE_SMF="false"

# SGE_ENABLE_ST
# if set to false Sun Service Tags will not be used
SGE_ENABLE_ST="true"

# SGE_CLUSTER_NAME
# Name of this cluster (used by SMF as an service instance name)
SGE_CLUSTER_NAME="Please enter cluster name"

# SGE_JMX_PORT is used by qmasters JMX MBean server
# mandatory if install_qmaster -jmx -auto <cfgfile>
# range: 1024-65500
SGE_JMX_PORT="Please enter port"

# SGE_JMX_SSL is used by qmasters JMX MBean server
# if SGE_JMX_SSL=true, the mbean server connection uses
# SSL authentication
SGE_JMX_SSL="false"

# SGE_JMX_SSL_CLIENT is used by qmasters JMX MBean server
# if SGE_JMX_SSL_CLIENT=true, the mbean server connection uses
# SSL authentication of the client in addition
SGE_JMX_SSL_CLIENT="false"

# SGE_JMX_SSL_KEYSTORE is used by qmasters JMX MBean server
# if SGE_JMX_SSL=true the server keystore found here is used
# e.g. /var/sgeCA/port<sge_qmaster_port>/<sge_cell>/private/keystore
SGE_JMX_SSL_KEYSTORE="Please enter absolute path of server keystore file"

# SGE_JMX_SSL_KEYSTORE_PW is used by qmasters JMX MBean server
# password for the SGE_JMX_SSL_KEYSTORE file
SGE_JMX_SSL_KEYSTORE_PW="Please enter the server keystore password"

# SGE_JVM_LIB_PATH is used by qmasters jvm thread
# path to libjvm.so
# if value is missing or set to "none" JMX thread will not be installed
# when the value is empty or path does not exit on the system, Grid Engine
# will try to find a correct value, if it cannot do so, value is set to
# "jvmlib_missing" and JMX thread will be configured but will fail to start
SGE_JVM_LIB_PATH="Please enter absolute path of libjvm.so"

# SGE_ADDITIONAL_JVM_ARGS is used by qmasters jvm thread
# jvm specific arguments as -verbose:jni etc.
# optional, can be empty
SGE_ADDITIONAL_JVM_ARGS="-Xmx256m"

# CELL_NAME, will be a dir in SGE_ROOT, contains the common dir
# Please enter only the name of the cell. No path, please
#(mandatory for qmaster and execd installation)
CELL_NAME="default"

# ADMIN_USER, if you want to use a different admin user than the owner,
# of SGE_ROOT, you have to enter the user name, here
# Leaving this blank, the owner of the SGE_ROOT dir will be used as admin user
ADMIN_USER=""

# The dir, where qmaster spools this parts, which are not spooled by DB
#(mandatory for qmaster installation)
QMASTER_SPOOL_DIR="Please, enter spooldir"

# The dir, where the execd spools (active jobs)
# This entry is needed, even if your are going to use
# berkeley db spooling. Only cluster configuration and jobs will
# be spooled in the database. The execution daemon still needs a spool
# directory
#(mandatory for qmaster installation)
EXECD_SPOOL_DIR="Please, enter spooldir"

# For monitoring and accounting of jobs, every job will get
# unique GID. So you have to enter a free GID Range, which
# is assigned to each job running on a machine.
# If you want to run 100 Jobs at the same time on one host you
# have to enter a GID-Range like that: 16000-16100
#(mandatory for qmaster installation)
GID_RANGE="Please, enter GID range"

# If SGE is compiled with -spool-dynamic, you have to enter here, which
# spooling method should be used. (classic or berkeleydb)
#(mandatory for qmaster installation)
SPOOLING_METHOD="berkeleydb"

# Name of the Server, where the Spooling DB is running on
# if spooling methode is berkeleydb, it must be "none", when
# using no spooling server and it must contain the servername
# if a server should be used. In case of "classic" spooling,
# can be left out
DB_SPOOLING_SERVER="none"

# The dir, where the DB spools
# If berkeley db spooling is used, it must contain the path to
# the spooling db. Please enter the full path. (eg. /tmp/data/spooldb)
# Remember, this directory must be local on the qmaster host or on the
# Berkeley DB Server host. No NFS mount, please
DB_SPOOLING_DIR="spooldb"

# This parameter set the number of parallel installation processes.
# The prevent a system overload, or exeeding the number of open file
# descriptors the user can limit the number of parallel install processes.
# eg. set PAR_EXECD_INST_COUNT="20", maximum 20 parallel execd are installed.
PAR_EXECD_INST_COUNT="20"

# A List of Host which should become admin hosts
# If you do not enter any host here, you have to add all of your hosts
# by hand, after the installation. The autoinstallation works without
# any entry
ADMIN_HOST_LIST="test1"

# A List of Host which should become submit hosts
# If you do not enter any host here, you have to add all of your hosts
# by hand, after the installation. The autoinstallation works without
# any entry
SUBMIT_HOST_LIST="test1"

# A List of Host which should become exec hosts
# If you do not enter any host here, you have to add all of your hosts
# by hand, after the installation. The autoinstallation works without
# any entry
# (mandatory for execution host installation)
EXEC_HOST_LIST="test1"

# The dir, where the execd spools (local configuration)
# If you want configure your execution daemons to spool in
# a local directory, you have to enter this directory here.
# If you do not want to configure a local execution host spool directory
# please leave this empty
EXECD_SPOOL_DIR_LOCAL=""

# If true, the domainnames will be ignored, during the hostname resolving
# if false, the fully qualified domain name will be used for name resolving
HOSTNAME_RESOLVING="true"

# Shell, which should be used for remote installation (rsh/ssh)
# This is only supported, if your hosts and rshd/sshd is configured,
# not to ask for a password, or promting any message.
SHELL_NAME="ssh"

# This remote copy command is used for csp installation.
# The script needs the remote copy command for distributing
# the csp certificates. Using ssl the command scp has to be entered,
# using  the not so secure rsh the command rcp has to be entered.
# Both need a passwordless ssh/rsh connection to the hosts, which
# should be connected to. (mandatory for csp installation mode)
COPY_COMMAND="scp"

# Enter your default domain, if you are using /etc/hosts or NIS configuration
DEFAULT_DOMAIN="none"

# If a job stops, fails, finish, you can send a mail to this adress
ADMIN_MAIL="none"

# If true, the rc scripts (sgemaster, sgeexecd, sgebdb) will be added,
# to start automatically during boottime
ADD_TO_RC="false"

#If this is "true" the file permissions of executables will be set to 755
#and of ordenary file to 644.
SET_FILE_PERMS="true"

# This option is not implemented, yet.
# When a exechost should be uninstalled, the running jobs will be rescheduled
RESCHEDULE_JOBS="wait"

# Enter a one of the three distributed scheduler tuning configuration sets
# (1=normal, 2=high, 3=max)
SCHEDD_CONF="1"

# The name of the shadow host. This host must have read/write permission
# to the qmaster spool directory
# If you want to setup a shadow host, you must enter the servername
# (mandatory for shadowhost installation)
SHADOW_HOST=""

# Remove this execution hosts in automatic mode
# (mandatory for unistallation of execution hosts)
EXEC_HOST_LIST_RM=""

# This option is used for startup script removing.
# If true, all rc startup scripts will be removed during
# automatic deinstallation. If false, the scripts won't
# be touched.
# (mandatory for unistallation of execution/qmaster hosts)
REMOVE_RC="true"

# This is a Windows specific part of the auto isntallation template
# If you going to install windows executions hosts, you have to enable the
# windows support. To do this, please set the WINDOWS_SUPPORT variable
# to "true". ("false" is disabled)
# (mandatory for qmaster installation, by default WINDOWS_SUPPORT is
# disabled)
WINDOWS_SUPPORT="false"

# Enabling the WINDOWS_SUPPORT, recommends the following parameter.
# The WIN_ADMIN_NAME will be added to the list of SGE managers.
# Without adding the WIN_ADMIN_NAME the execution host installation
# won't install correctly.
# WIN_ADMIN_NAME is set to "Administrator" which is default on most
# Windows systems. In some cases the WIN_ADMIN_NAME can be prefixed with
# the windows domain name (eg. DOMAIN+Administrator)
# (mandatory for qmaster installation, if windows hosts should be installed)
WIN_ADMIN_NAME="Administrator"

# This parameter is used to switch between local ADMINUSER and Windows
# Domain Adminuser. Setting the WIN_DOMAIN_ACCESS variable to true, the
# Adminuser will be a Windows Domain User. It is recommended that
# a Windows Domain Server is configured and the Windows Domain User is
# created. Setting this variable to false, the local Adminuser will be
# used as ADMINUSER. The install script tries to create this user account
# but we recommend, because it will be saver, to create this user,
# before running the installation.
# (mandatory for qmaster installation, if windows hosts should be installed)
WIN_DOMAIN_ACCESS="false"

# This section is used for csp installation mode.
# CSP_RECREATE recreates the certs on each installtion, if true.
# In case of false, the certs will be created, if not existing.
# Existing certs won't be overwritten. (mandatory for csp install)
CSP_RECREATE="true"

# The created certs won't be copied, if this option is set to false
# If true, the script tries to copy the generated certs. This
# requires passwordless ssh/rsh access for user root to the
# execution hosts
CSP_COPY_CERTS="false"

# csp information, your country code (only 2 characters)
# (mandatory for csp install)
CSP_COUNTRY_CODE="DE"

# your state (mandatory for csp install)
CSP_STATE="Germany"

# your location, eg. the building (mandatory for csp install)
CSP_LOCATION="Building"

# your arganisation (mandatory for csp install)
CSP_ORGA="Organisation"

# your organisation unit (mandatory for csp install)
CSP_ORGA_UNIT="Organisation_unit"

# your email (mandatory for csp install)
CSP_MAIL_ADDRESS="name@yourdomain.com"
